TurboFil offers solutions for small parts, medical devices, and o-ring assembly. These solutions can be integrated into existing systems allowing for accurate and reliable results. Our engineers are experts in factory automation and can develop a turnkey system to fit your companies needs.
Function:

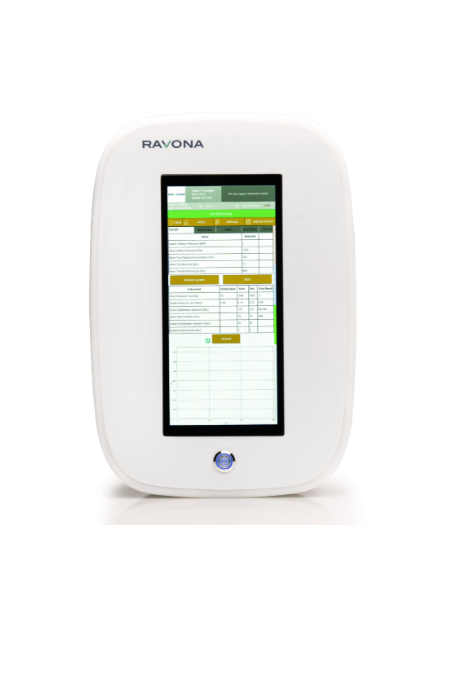

Automated glove and sleeve integrity tester using pressure decay method for reliable leak detection.Container:
Tests gloves and sleeves on isolators, RABS, and containment gloveboxes.Output:
Test time typically under 5 minutes per glove or sleeve.Material:

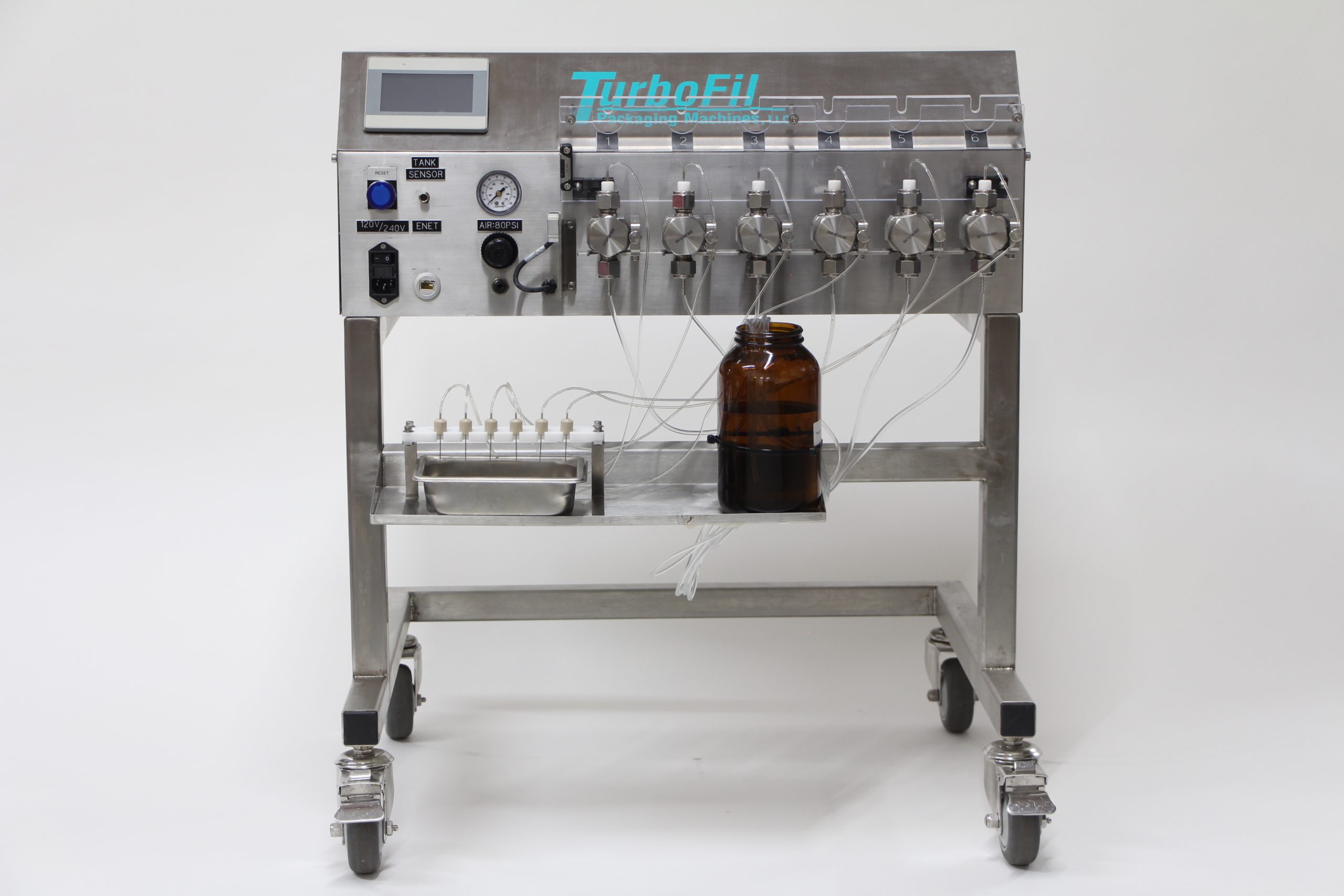

Designed for sterile environments; stainless steel construction with touchscreen HMI.Function: Automated multi-head vial and container filling using independently controlled, servo-driven ceramic pumps for precise, repeatable dosing.
Container: Suitable for open or closed vials, small bottles, and other rigid containers.
Output: Processes up to 12 containers simultaneously
Material: Handles low to high viscosity liquids
-
Standard web width up to 5″
-
Portable and lightweight table top unit
-
Label application activated by foot switch
-
-
Standard web width up to 5″
-
Portable and lightweight table top unit
-
Label application activated by foot switch
-

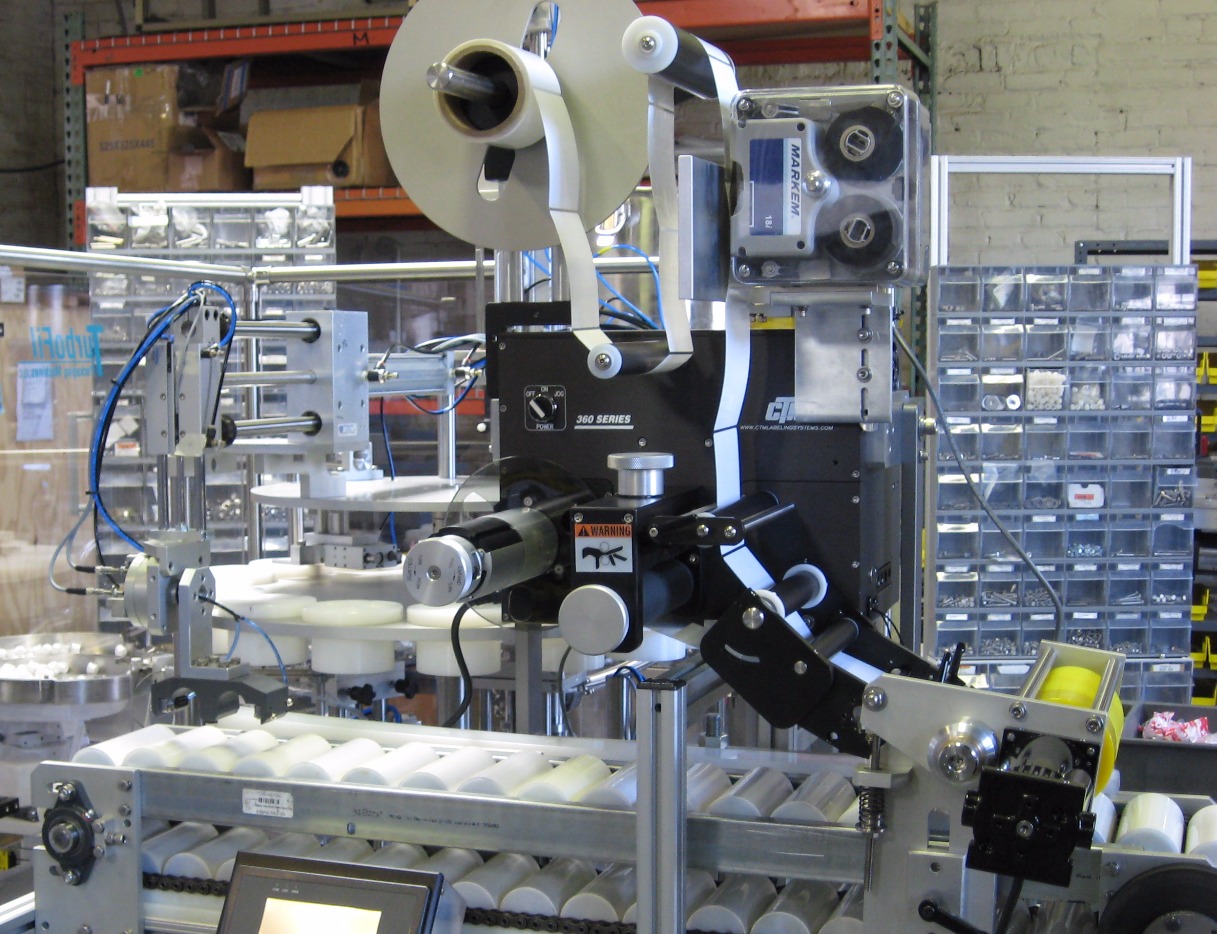

Function: High-precision inline labeling system designed specifically for dual chamber syringes, ensuring accurate and consistent label placement.
Container : Accommodates a wide range of dual chamber syringes
Material : Applies both paper and plastic labels with high positional accuracy.
Output Capacity: 30 parts per minute
Function: Automated and semi-automated systems for the precise filling and assembly of Aptar UDS (Unidose System) nasal applicators for injectable-free drug delivery.
Container Compatibility: Compatible with single-use UDS applicators
Output Capacity: Up to 80 units per minute standard, with options up to 100 ppm
Material Handling: Inhaled and nasal drug products
Function: High-performance linear motor-based platform for automated filling and assembly of complex pharmaceutical and cosmetic components.
Container: Customizable for syringes, vials, applicators, & tubes
Output : Up to 120 units per minute
Material : Low to high viscosity
Function: Automated vacuum-based system for inserting plungers into single or double-barrel syringes and cartridges.
Container : Designed for filled and capped cartridges or syringes
Output : Up to 15 units per minute
Material: Pharmaceutical and cosmetics
Function: Automated syringe filling and capping system using TurboFil’s TipFil technology for filling through the syringe tip.
Container : Works with pre-assembled syringes
Output : Up to 25 parts per minute
Material : Low to high viscosity
